Home > Products > Instant Hot Water Dispenser > Classic Mini Hot Water Dispenser - KG-520

Instant Hot Water DispenserClassic Mini Hot Water Dispenser - KG-520

  • Classic Mini Hot Water Dispenser - KG-520
Product Serial : KG-520
Capacity:2.4 liters Outer Material:
Stainless Steel 304
Electric Voltage:
110/220V AC
Max Temperature (Adjustable):
98 ℃
Electric Consumption:
780/1300W
Size:
17(W)x 17(D)x 28(H)cm
Inner Material:
Stainless Steel #304
Power Cable:2mm²
Faucet Base Hole: Dia. 35mm LED Indication Light
  • Product Description
  • Product Feature

Classic Mini Hot Water Dispenser KG-520

  • Energy-efficiencyIt consumes less electricity than a 40 watt light bulb.
  • Green Material:The best material of thermal insulation meets the UL94 standard.
  • Prevent Empty Burning : Automated Heater Protection
  • Safety:Unique safety lock design loaded to prevent burns.
  • Hygienic:Design of detachable stainless steel tank can be cleaned after using for a period of time. A large 2.4 liter tank supplies plentiful 60 cups per hour capacity.
  • Innovation: SUS316L Ring Type Heater. Bigger heating area, faster heat conduction, more power-efficient, and longer lifetime.
  • New Invention: Self-priming expansion chamber. New design model greatly reduces the dripping (the flaw of traditional instant hot water dispenser)

 Best Instant Hot Water Dispenser
■ Under-sink Hot Water Heater is a very popular and fashion product in USA, Japan and other advanced countries. It could supply hot water instantly and saving space as well as replenish the source water automatically.

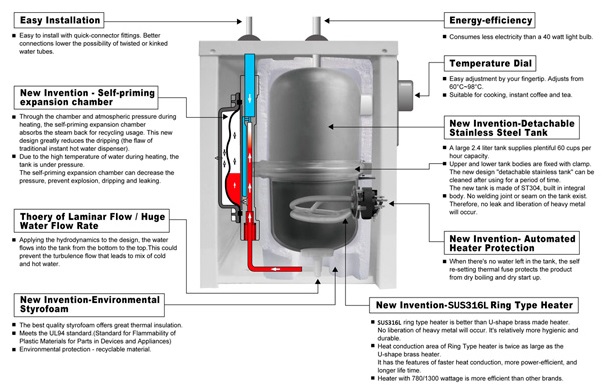

[New Invention] Diana Patented Self-priming Expansion Chamber
■ Through the chamber and atmospheric pressure during heating, the self-priming expansion chamber absorbs the steam back for recycling usage. This new design greatly reduces the dripping (the flaw of traditional instant hot water dispenser).

■ Due to the high temperature of water during heating, the tank is under pressure. The self-priming expansion chamber can decrease the pressure, prevent explosion, dripping and leak.

[New Invention] Automated Heater Protection
■ When there's no water left in the tank, the self re-setting thermal fuse protects the product from dry boiling and dry start up.

[New Invention] SUS304 Ring Type Heater
■ SUS316L ring type heater is better than U-shape brass made heater. No liberation of heavy metal will occur. It's relatively more hygienic and durable.
■ Heat conduction area of Ring Type heater is twice as large as the U-shape brass heater. It has the features of faster heat conduction, more power-efficient, and longer lifetime.
■ Heater with 780/1300 wattage is more efficient than other brands.

[New Invention] Detachable Stainless Steel Tank
■ A large 2.4 liter tank supplies plentiful 60 cups per hour capacity.
■ Upper and lower tank bodies are fixed with clamp. The new design "detachable stainless tank" can be cleaned after using for a period of time.
■ The new tank is made of ST304, built in integral body. No welding joint or seam on the tank exist. Therefore, no leak and liberation of heavy metal will occur.

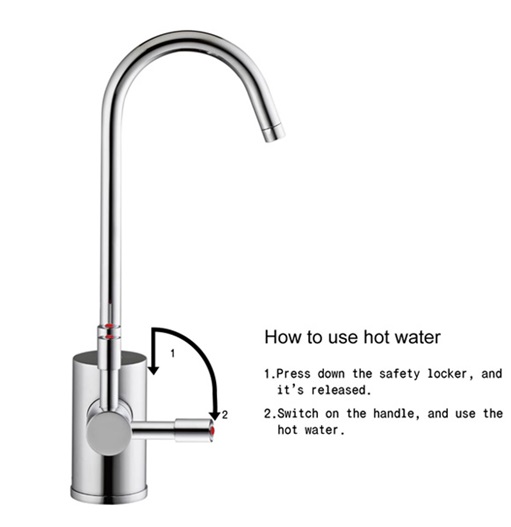

[New Invention] Diana Patented Faucet with Safety Lock
■ Unique safety lock design is loaded to prevent kids from burns by hot water.





Features of Instant Hot Water Dispenser KG-520



 New Cuisine Culture by Hot Water Heater

Cooking . Boiling

Spend less time in soup boiling and instant noodles softening.
Blanch

Use hot water to blanch the meat or vegetable.
Steaming

When steaming the foods or snacks, input hot water to save time.
Drink

Use hot water to make coffee, tea, and herbal tea for your customers is faster.
Cleanse Oil

Flush the dishes and plates by hot water first to cleanse the adhesive oil then wash by detergent could save the time and water.
Hot Water Cleansing

Hot water kills bacteria, could use it to cleanse cutting board, wiper, and feeding bottle.

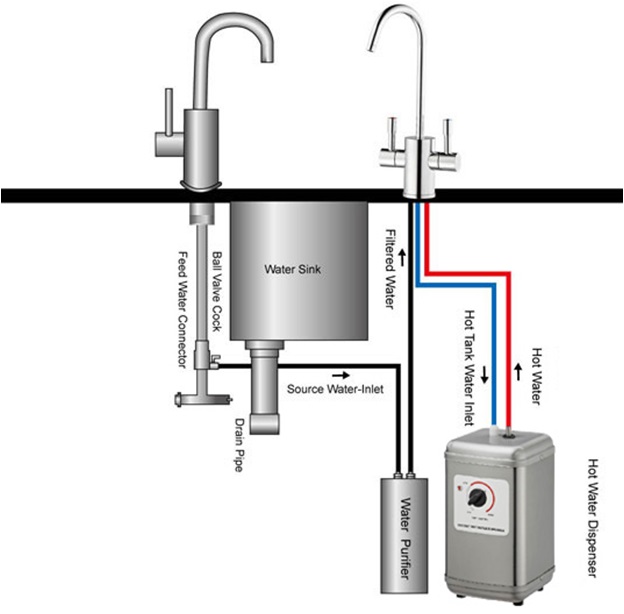

Installation
